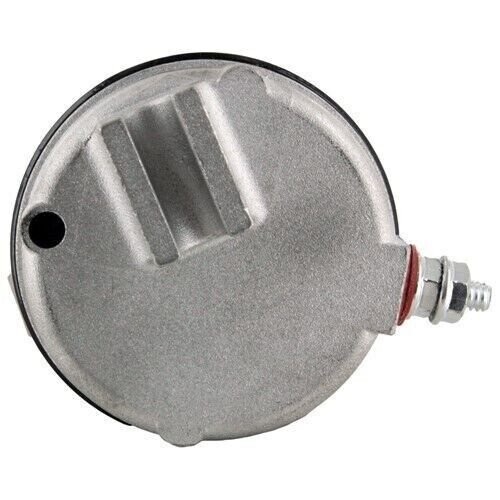

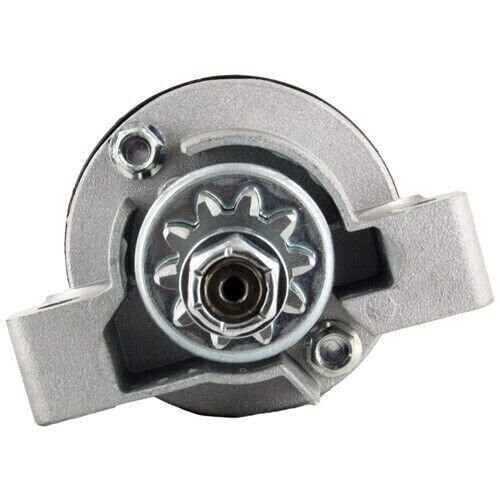

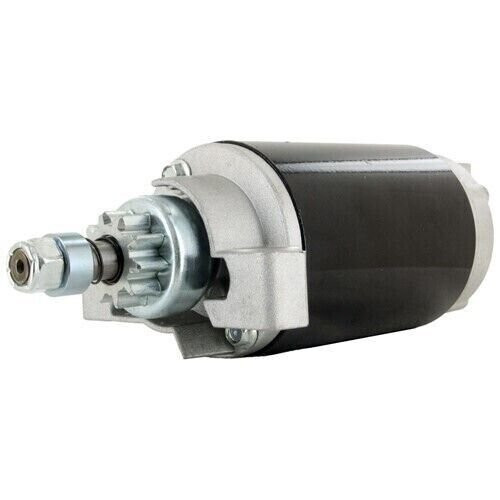

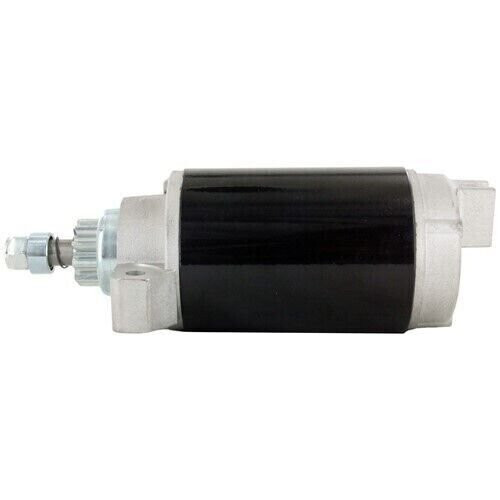

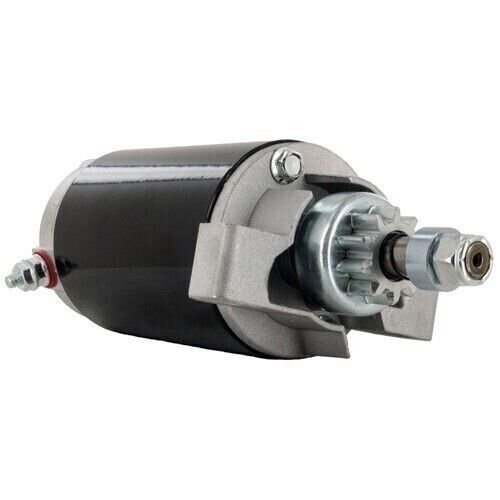

Starter 5726N For Mercury 50ELO 50ELPTO 60ELO 60EO 60ELPTO Engines 50-822462-1

Compatible With:

Mariner Engine - Marine

30EHO 39.3ci 30 H.P. 1995-2000

30ELHO 39.3ci 30 H.P. 1995-2000

30ELO 39.3ci 30 H.P. 1994-2000

30ELPTO 39.3ci 30 H.P. 1995-2001

30EO 39.3ci 30 H.P. 1994-2000

40ELHPTO 43.9ci 40 H.P. 1997

40ELHPTO 59.0ci 40 H.P. 1998-2001

40ELO 43.9ci 40 H.P. 1997

40ELO 59.0ci 40 H.P. 1998-2001

40ELPTO 43.9ci 40 H.P. 1997

40ELPTO 59.0ci 40 H.P. 1998-2001

40EO 43.9ci 40 H.P. 1997

40EO 59.0ci 40 H.P. 1998-2001

40EO Jet 30 43.9ci 40 H.P. 1997

40EO Jet 30 59.0ci 40 H.P. 1998-2001

50ELHPTO 59.0ci 50 H.P. 1998-2001

50ELO 59.0ci 50 H.P. 1998-2001

50ELPTO 59.0ci 50 H.P. 1998-2001

50EO 59.0ci 50 H.P. 1999-2001

60ELHPTO 59.0ci 60 H.P. 1998-2000

60ELO 59.0ci 60 H.P. 1998-2000

60ELPTO 59.0ci 60 H.P. 1998-2001

60ELPTO Big Foot 59.0ci 60 H.P. 1998-2000

60EO 59.0ci 60 H.P. 1998-2001

60EO Jet 45 59.0ci 60 H.P. 1998-2001

Mercury Engine - Marine

30EHO 39.3ci 30 H.P. 1995-2002

30ELHO 39.3ci 30 H.P. 1995-2002

30ELO 39.3ci 30 H.P. 1994-2002

30ELPTO 39.3ci 30 H.P. 1995-2001

30EO 39.3ci 30 H.P. 1994-2002

40ELHPTO 43.9ci 40 H.P. 1997

40ELHPTO 59.0ci 40 H.P. 1998-2005

40ELO 43.9ci 40 H.P. 1997

40ELO 59.0ci 40 H.P. 1998-2004

40ELPT 4-Stroke 45.6ci 40 H.P. 1998

40ELPTO 43.9ci 40 H.P. 1997

40ELPTO 59.0ci 40 H.P. 1998-2005

40EO 43.9ci 40 H.P. 1997

40EO 59.0ci 40 H.P. 1998-2005

40EO Jet 30 43.9ci 40 H.P. 1997

40EO Jet 30 59.0ci 40 H.P. 1998-2004

50ELHPTO 59.0ci 50 H.P. 1998-2005

50ELO 59.0ci 50 H.P. 1998-2002

50ELPTO 59.0ci 50 H.P. 1998-2009

60ELHPTO 59.0ci 60 H.P. 1998-2002

60ELO 59.0ci 60 H.P. 1998-2002

60ELPTO 59.0ci 60 H.P. 1998-2005

60ELPTO Big Foot 59.0ci 60 H.P. 1998-2005

60EO 59.0ci 60 H.P. 1998-2002

60EO Jet 45 59.0ci 60 H.P. 1998-2005

Specifications:

Volt: 12

Rotation Direction: Counter Clockwise

Electric Starter Type: Permanent Magnet Direct Drive (PMDD)

Number of Teeth: 10

Gear OD: 1.268"/32.200mm

Mount Hole ID 1: 8mm Unthreaded

Mount Hole 2 Type: Unthreaded

Note: 4"/101.6mm Long Field Case, SAE J1171 Certified

Replaces these part numbers:

API Marine: MOT3012

Arco Marine: 5396

Johnson Electric: 5675640, SM56756

Lester: 5726

Mercury Marine: 50-822462, 50-822462-1, 50-822462T1, 50-893890T, 822462T1, 893890T

MES Motorcycle & Marine: S2046M, S2046M-OE

Remy Small Motor: RS41017

Sierra Marine: 18-5621

United Technologies: 5675640, 5675640-M030SM, SM56756
