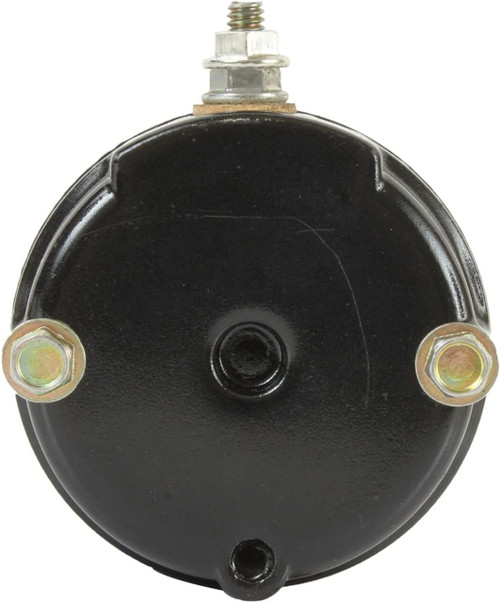

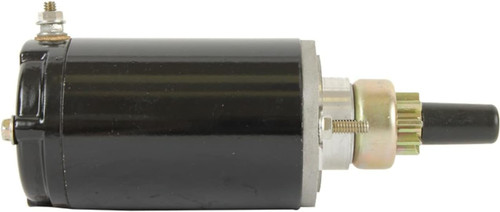

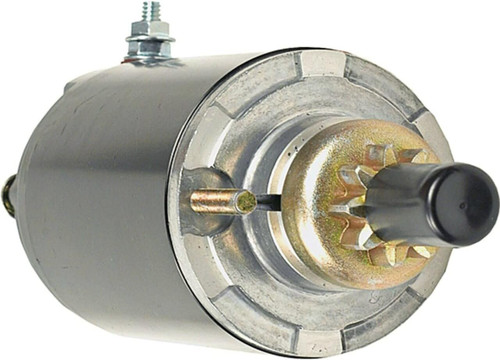

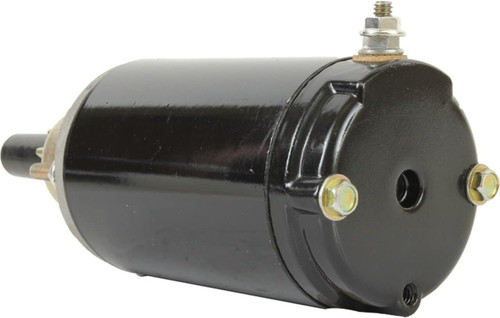

Starter For Cub Cadet 1860 1861 1862 1872 1882 682 782 784 Garden Tractors

Compatible With:

Bobcat Skid Steer Loader 440 Kohler KT17QS Gas 1983-1985

Cub Cadet Tractor - Garden 1535 Kohler 15HP Gas 1990-1991 1541 Kohler 15HP Gas 1990-1991 1710 Kohler 17HP Gas 1985 1711 Kohler 17HP Gas 1985 1712 Kohler 17HP Gas 1985 1806 Kohler 18HP Gas 1987-1989 1810 Kohler 18HP Gas 1986-1989 1811 Kohler 18HP Gas 1986-1989 1812 Kohler 18HP Gas 1986-1989 1860 Kohler 18HP Gas 1990-1991 1861 Kohler 18HP Gas 1992 1862 Kohler 18HP Gas 1990-1992 1872 Kohler 18HP Gas 1987-1989 1882 Kohler 18HP Gas 1990-1991 682 Kohler 17HP Gas 1980-1984 782 Kohler 17HP Gas 1980-1984 784 Kohler 17HP Gas 1982-1984

Cub Cadet Tractor - Lawn 1415 Kohler 14HP Gas 1988-1989 1420 Kohler 14HP Gas 1988-1991 1430 Kohler 14HP Gas 1992-1993 1615 Kohler 16HP Gas 1987 1620 Kohler 16HP Gas 1987 1715 Kohler 17HP Gas 1988-1989 1720 Kohler 17HP Gas 1988-1991 1730 Kohler 17HP Gas 1992-1993

Kohler Small Engine Air Cooled KT-17 Air Cooled KT-19 Air Cooled M-18 Air Cooled MV-16S Air Cooled MV-17 Air Cooled MV-18

Toro Tractor - Lawn HMR-1600 Kohler 16HP 1989

Specifications:

Volt: 12 Rotation Direction: Counter Clockwise Electric Starter Type: Permanent Magnet Direct Drive (PMDD) Number of Teeth: 9 Gear OD: 1.150"/29.200mm Note: 4.033"/102.4mm Long Field Case@ (2) 1/4-20 x 1.1" Long Bolts for Mounting

Replaces OEM Part Numbers:

Gravely: 032546 Kohler: 52 098 03, 52 098 09, 52 098 12, 52 098 12-S United Technologies: 1770540, 1819040, 1819040-M030SM, 5213140, 5213140-M030SM, 5666240, 5666240-M030SM, SM17705, SM18190, SM52131, SM56662
