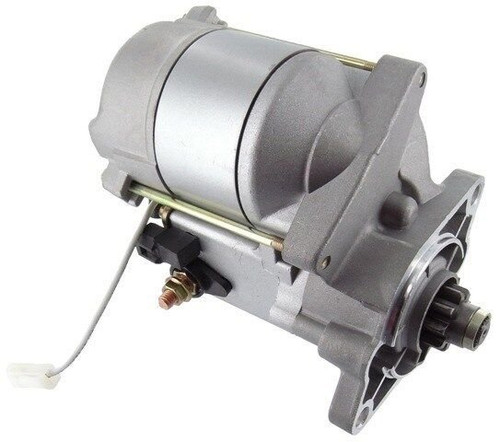

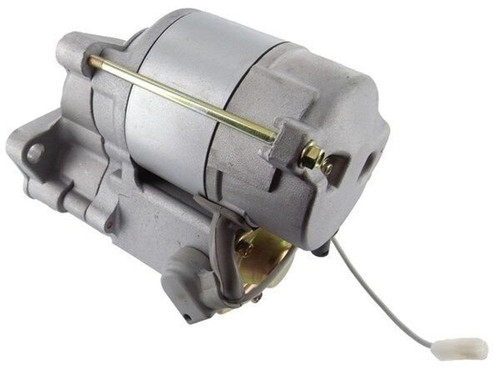

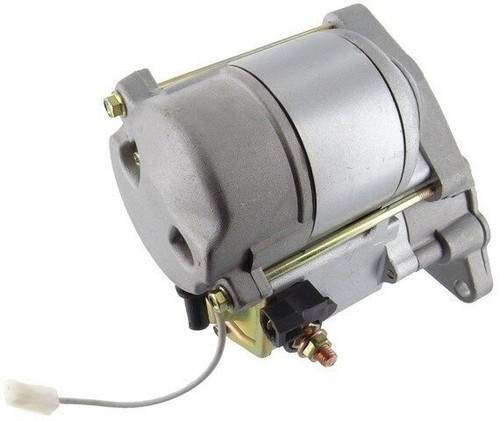

Starter For Gravely Lawn Tractor PM460 Kubota 30HP Diesel 228000-0950

Compatible With:

Gravely Tractor - Lawn

PM460 Kubota 30HP Dsl 1991-2007

Kubota Engines

1992-On V1405

1992-On V1505-B

Specifications:

Type: OSGR

Voltage: 12 Volts

kW: 1.2 kW

Rotation: CW

Teeth/Splines: 9 Teeth/Splines

Pinion/Splines OD: 29.1 mm / 1.146 in

Mounting Hole 1: 9.0mm ID Unthreaded

Mounting Hole 2: 9.0mm ID Unthreaded

Approximate Weight: 7.95 lbs / 3.61 kg

Replaces OEM Part Numbers:

Denso: 228000-0980, 228000-0981, 228000-0950, 228000-0951, 9722809-098

Kubota: 16285-63010, 16285-63011, 16285-63012, 1900-0117, 37560-63010, 37560-63011, 37560-63012
