Data about Starter For Kioti Daedong Compact Tractors E5500-63014, E5500-63015, E5500-63016
We were unable to add 'Starter For Kioti Daedong Compact Tractors E5500-63014, E5500-63015, E5500-63016' to your cart as it is currently out of stock.
SKU: 19601N_NTG-1

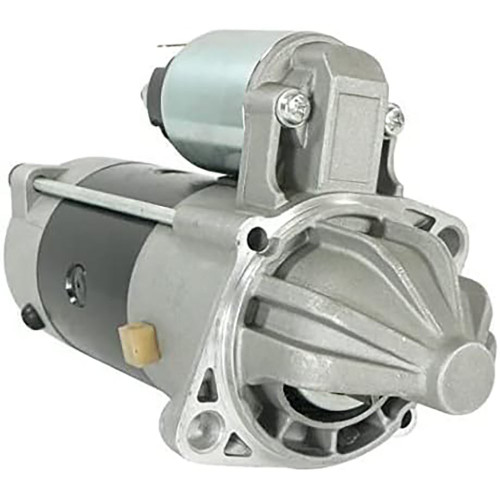

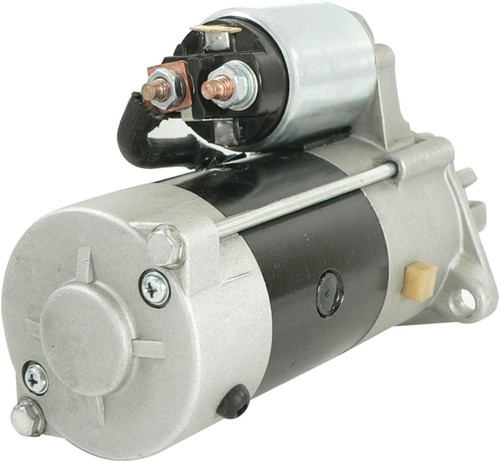

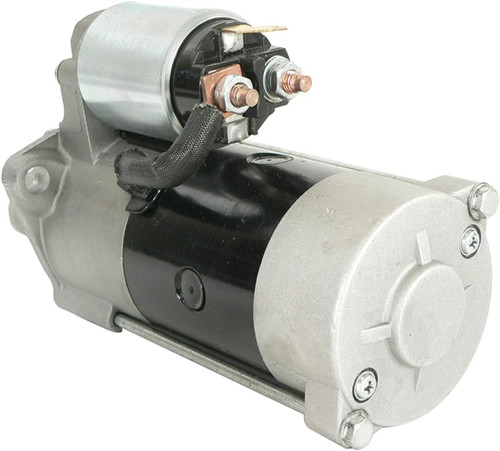

Starter For Kioti Daedong Compact Tractors E5500-63014, E5500-63015, E5500-63016
In Stock
We were unable to add 'Starter For Kioti Daedong Compact Tractors E5500-63014, E5500-63015, E5500-63016' to your cart as it is currently out of stock.
SKU: 19601N_NTG-1
Compatible With:
KIOTI Tractors - Compact
CK25 All Daedong 3-79 25HP Dsl
CK2510 All Daedong 3-85 24.5HP Dsl
CK2510H All Daedong 3-85 24.5HP Dsl
CK25H All Daedong 3-79 25HP Dsl
CK27 All Daedong 3-85 28HP Dsl
CK27H All Daedong 3-85 28HP Dsl
CK30 All Daedong 3-92 30HP Dsl
CK30H All Daedong 3-92 30HP Dsl
CK35 All Daedong 3-101 34HP Dsl
DK35 All Daedong 3-101 35HP Dsl
DK35CR All Daedong 3-101 35HP Dsl
DK35HSE All Daedong 3-101 35HP Dsl
DK35SE All Daedong 3-111 38HP Dsl
DK35SEH All Daedong 3-111 38HP Dsl
DK40 All Daedong 4-122 40HP Dsl
DK40CR All Daedong 4-122 41HP Dsl
DK40HSE All Daedong 4-122 41HP Dsl
DK40SE All Daedong 4-122 41HP Dsl
DK40SEHC All Daedong 4-122 41HP Dsl
DK45 All Daedong 4-134 45HP Dsl
DK45C All Daedong 4-134 45HP Dsl
DK45CSE All Daedong 4-134 45HP Dsl
DK45HSE All Daedong 4-134 45HP Dsl
DK45S All Daedong 4-134 45HP Dsl
DK45SC All Daedong 4-134 45HP Dsl
DK45SE All Daedong 4-134 45HP Dsl
DK50 All Daedong 4-134 49HP Dsl
DK50C All Daedong 4-134 49HP Dsl
DK55 All Daedong 4-134 55HP Dsl
DK55C All Daedong 4-134 55HP Dsl
DS3510 All Daedong 3-101 34HP Dsl
DS4110 All Daedong 4-122 41HP Dsl
DS4110HS All Daedong 4-122 41HP Dsl
DS4510 All Daedong 4-134 45HP Dsl
DS4510HS All Daedong 4-134 45HP Dsl
LK2554 All Daedong 3-79 24.4HP Dsl
LK30 All Daedong 3-92 30HP Dsl
LK3054 All Daedong 3-85 30.5HP Dsl
LK3054XS All Daedong 3-85 30.5HP Dsl
LK3504 All Daedong 4-101 35HP Dsl
Specifications:
Volt: 12
Power: 1.700 kw
HP: 2.280
Rotation Direction: Clockwise
Electric Starter Type: Planetary Gear Reduction (PLGR)
Number of Teeth: 9
Gear OD: 1.331"/33.800mm
Mount Hole ID 1: 11.100mm Unthreaded
Mount Hole 2 Type: Unthreaded
Note: Battery Stud M8-1.25 Threaded@ Blade Switch Terminal@ External Thru Bolts
Replaces OEM Part Numbers:
Kioti: E5500-63010, E5500-63011, E5500-63012, E5500-63013, E5500-63014, E5500-63015, E5500-63016
Lucas Electric: LRS04077
Mando: G117559, MG117559
Valeo: 600350, 600931, TM000A07101
